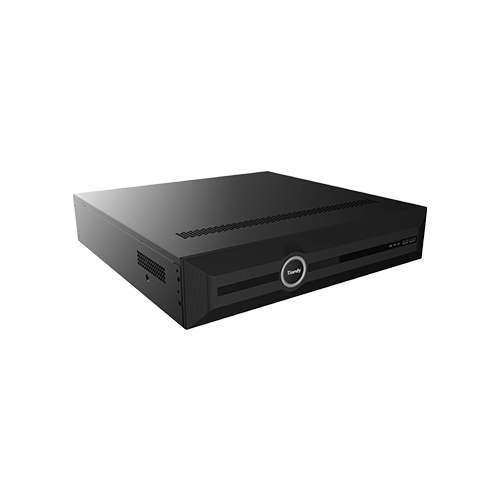

Tiandy TC-R3880 I/B/N/V4.0 H.265 8HDD 80ch NVR Price In Dubai UAE
- ·Up to 80-ch IP camera accesses
·Incoming/Outgoing bandwidth: 640Mbps/320Mbps
·S+265, H.265, S+264, H.264 video formats
·Max. decoding capability: 16MP(30fps)×3 or 1080P(30fps)×24
·16-ch synchronous playback
·Up to 24 TB capacity for each HDD
·Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs
·HDMI output at up to 4K resolution
·2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
Enquire on Whatsapp
Description
| Category | Specification |
|---|---|
| Access Channel | 80 |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 320Mbps |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding Capability | 16MP(30fps)×3, 12MP(30fps)×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×24, 720P(30fps)×48, 4CIF(30fps)×80 |
| Playback Decoding Capability | 16MP(30fps)×3, 12MP×4, 8MP(30fps)×6, 6MP(30fps)×8, 5MP(30fps)×9, 4MP(30fps)×12, 3MP(30fps)×16, 1080P(30fps)×16, 720P(30fps)×16 |
| Third-party Camera Access | ONVIF; RTSP |
| HDMI Output | 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), 3840×2160(30Hz/60Hz) (4K) |
| VGA Output | 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Multi-screen Display | Independent Output: HDMI1/VGA1, HDMI2/VGA2 (up to 80 screens) |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, 3.5mm; BNC |
| Two-Way Audio | 1-ch, 3.5mm (using audio input) |
| Video Compression | S+265, H.265, S+264, H.264 |
| Audio Compression | G711A, G711U, AAC, ADPCM_DIV4 |
| Stream Type | Video, Video & Audio |
| Network Protocol | ARP, DDNS, DHCP, DNS, Easy DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, RTCP, RTP, RTSP, SMB/CIFS, SMTP, SNMP v1, SRTP, SSH, SSL, TLSv1.2, TLSv1.3, TCP/IP, UDP, Unicast, UPnP |
| Mobile Phone Access | Android, iOS, P2P |
| System Compatibility | ONVIF(Profile S/T/G), RTSP, CGI, SDK |
| Web Browser Compatibility | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Multi-channel Playback | 16 |
| Record Mode | Manual, Alarm, Schedule |
| Storage Method | Local HDD, eSATA |
| Backup | USB storage device, eSATA, Network |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom |
| Dual Stream Record | Yes |
| General Alarm | Motion Detection, Mask Alarm, Alarm Input (IPC/NVR), Manual Alarm |
| Exceptions Alarm | Video Loss, IP Conflict, MAC Conflict, Network Disconnected, No Disk, Illegal Access, Disk Group Space Alert, Disk Full, Disk R/W Error, Recording Abnormal, Smart Disk Error, Temperature Abnormal, etc. |
| Intelligent Analytics | AI features including Tripwire, Perimeter, Object Abandon, Loitering, People Counting, Face Detection, License Plate Recognition, Smoke & Fire Detection, Human/Vehicle Classification, and more |
| VCA Search | Heatmap, Early-warning Search, Behavior Search, License Plate Search, Safety Helmet Search, Face Search |
| Face Detection Attributes | Gender, Age, Glasses, Face Mask, Body Temp |
| Face Recognition | Up to 300 face libraries, 100000 base images, Face Picture Comparison (IPC supported) |
| HDD Capacity | Up to 24 TB per HDD |
| Disk Group | 8 Disk Groups |
| RAID Support | JBOD, RAID0, RAID1, RAID5, RAID6, RAID10 |
| eSATA Port | 1×eSATA |
| USB Ports | 2×USB2.0, 1×USB3.0 |
| HDMI Ports | 2×HDMI (up to 4K resolution) |
| VGA Ports | 2×VGA |
| Network Interface | 2×RJ-45 (10/100/1000 Mbps self-adaptive Ethernet) |
| SATA Interface | 8×SATA |
| RS232 Interface | 1×RS232 |
| RS485 Interface | 2×RS485 |
| Alarm I/O | 16-ch TTL inputs, 3mA, 3.3VDC; 4-ch relay outputs, 1A, 24VDC |
| UI Languages | Multiple languages including English, Spanish, French, Russian, Arabic, Chinese, etc. |
| Power Supply | 100~240V AC |
| Power Consumption | <18W (HDD not included, idling) |
| Net Weight | 8 kg |
| Gross Weight | 10.38 kg |
| Dimensions (Boundary) | 440(L) × 460(W) × 94(H) mm |
| Dimensions (Package) | 565(L) × 565(W) × 220(H) mm |
| Operating Temperature | -10℃ ~ +55℃ (+14℉ ~ +131℉) |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Temperature | -20℃ ~ +60℃ (-4℉ ~ +140℉) |
| Package Kit | Network Video Recorder, Screw Pack, Mouse, Power Cord, Ear Plates, SATA Hard Disk Data Cables |
