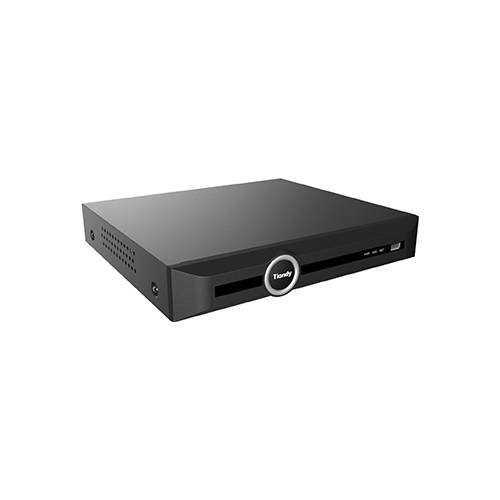

Tiandy TC-R3210 H.265 2HDD 10ch NVR Price In Dubai UAE
Up to 10-ch IP camera accesses
·Incoming/Outgoing bandwidth: 160Mbps/64Mbps
·S+265, H.265, S+264, H.264 video formats
·Max. decoding capability: 8MP(30fps)×2 or 1080P(30fps)×8
·10-ch synchronous playback
·Up to 10 TB capacity for each HDD
·Simultaneous HDMI and VGA outputs
·HDMI output at up to 4K resolution
·1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
Enquire on Whatsapp
Description
| Category | Details |
|---|---|
| Video and Audio | |
| Access Channel | 10 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding Capability | Up to 8MP at 30fps, multiple channels (depends on resolution, up to 10 channels at 720P) |
| Playback Decoding Capability | Similar to preview decoding capability, with up to 10 channels for 720P |
| Third-party Camera Access | ONVIF, RTSP |
| HDMI Output | 1024×768, 720P, 1280×800, 1440×900, 1080P, 2K, 4K |
| VGA Output | Similar resolutions as HDMI |
| Multi-screen Display | Simultaneous output for up to 10 screens via VGA or HDMI |
| Audio Input | 1-ch, 3.5mm |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, 3.5mm |
| Video Compression | S+265, H.265, S+264, H.264 |
| Audio Compression | G711A, G711U, AAC, ADPCM_DIV4 |
| Stream Type | Video, Video & Audio |
| Network | |
| Network Protocol | IPv4, IPv6, ARP, DDNS, DHCP, DNS, RTSP, FTP, HTTP, HTTPS, ICMP, IGMP, and others |
| Mobile Phone Access | Android, iOS, P2P |
| System Compatibility | ONVIF(Profile S/T/G), RTSP, CGI, SDK, Milestone |
| Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 10 |
| Record Mode | Manual, Alarm, Schedule |
| Storage Method | Local HDD |
| Backup | USB storage, Network |
| Playback Function | Play/Pause/Stop/Slow, Speed, Backwards/Forwards 30s, Full Screen, Backup, Digital Zoom, Step |
| Dual Stream Record | Yes |
| Alarm | |
| General Alarm | Motion Detection, Mask Alarm, Alarm Input (IPC, NVR), Manual Alarm |
| Exceptions Alarm | Video Loss, IP/MAC Conflict, Network Disconnected, No Disk, Illegal Access, Disk Errors, Voltage Alarm, RTC Failure, and others |
| Intelligent Analytics | |
| AI by Camera | Tripwire, Perimeter, Object Abandon, Parking, Heatmap, Video Abnormal, Face Detection, People Counting, Smart Motion, and more |
| VCA Search | Heatmap, Behavior Search, Face Search, Early-warning Search, Thermographic Retrieval |
| Face Detection | Gender, Age |
| Storage | |
| HDD Capacity | Up to 10 TB per HDD |
| Disk Group | 2 Disk Group |
| External Ports | |
| USB | 2×USB 2.0 |
| HDMI | 1×HDMI (up to 4K resolution) |
| VGA | 1×VGA |
| Network Interface | 1×RJ-45 (10/100/1000 Mbps Ethernet port) |
| SATA | 2×SATA interfaces |
| Alarm I/O | 4-ch TTL inputs, 1-ch relay output |
| General | |
| UI Language | Multiple languages: English, Chinese, Spanish, Arabic, Russian, French, German, etc. |
| Power Supply | DC12V 3.3A |
| Power Consumption | <10W (without HDD, idling) |
| NetWeight | 1.6 kg |
| GrossWeight | 3 kg |
| Dimensions (Boundary) | 341(L) × 273(W) × 47(H) mm |
| Dimensions (Package) | 415(L) × 140(W) × 375(H) mm |
| Operating Temperature | -10℃ ~ +55℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Temperature | -20℃ ~ +60℃ |
| Package Kit | NVR, Screw Pack, Mouse, Power Adapter, Power Cord |
