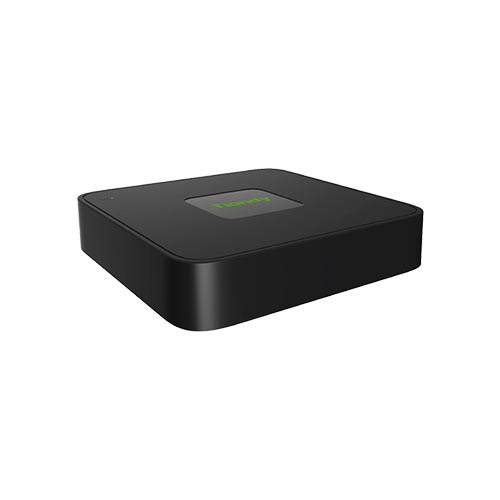

Tiandy TC-R3104 H.265 1HDD 4ch PSE NVR Price In Dubai UAE
Spec: I/B/P4/C/Am/L/S
·Up to 4-ch IP camera inputs
·Access/forwarding bandwidth at 60Mbps/40Mbps
·S+265, H.265, S+264, H.264 video formats.
·Access/forwarding bandwidth at 60Mbps/40Mbps
·S+265, H.265, S+264, H.264 video formats.
Enquire on Whatsapp
Description
| Category | Details |
|---|---|
| Video and Audio | |
| Access Channel | 4 |
| Incoming Bandwidth | 60 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Resolution | 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding Capability | 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4, 4CIF(30fps)×4 |
| Playback Decoding Capability | 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2, 720P(30fps)×4 |
| Third-party Camera Access | ONVIF, RTSP |
| HDMI Output | 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Compression | Video: S+265, H.265, S+264, H.264 Audio: G711A, G711U, ADPCM_DIV4 |
| Stream Type | Video, Video & Audio |
| Network | |
| Network Protocol | ARP, DDNS, DHCP, DNS, Easy DDNS, HTTP, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SSH, TCP/IP, UDP, Unicast, UPnP |
| Mobile Phone Access | Android, iOS, P2P |
| System Compatibility | CGI, SDK |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 4 |
| Record Mode | Alarm Recording, Schedule Recording |
| Storage Method | Local HDD |
| Backup | USB storage device |
| Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing) |
| Alarm | |
| General Alarm | Motion Detection, Mask Alarm |
| Exceptions Alarm | Video Loss, IP Conflict, MAC Conflict, Network Disconnected, No Disk, Illegal Access, Disk Full, Disk R/W Error, Recording Abnormal, Abnormal found in smart of disk, Abnormal temperature of the disk, PoE Overload, Voltage Alarm (IPC), RTC Failure |
| Intelligent Analytics | Smart Motion |
| Storage | |
| HDD Capacity | Up to 6 TB capacity for each HDD |
| External Ports | |
| USB | 2×USB2.0 |
| HDMI | 1×HDMI |
| Network Interface | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| SATA | 1×SATA interface |
| PoE | 4×RJ45, 10/100 Mbps self-adaptive Ethernet port |
| PoE Budget | 28W |
| Power per PoE Port | 28W |
| PoE Standard | IEEE 802.3 af/at |
| General | |
| UI Language | English, Spanish, Italian, Turkish, French, Polish, Dutch, Hebrew, German, Portuguese |
| Power Supply | DC48V 1A |
| Power Consumption | <10W (without HDD & without PoE) |
| Net Weight | 0.4 kg |
| Gross Weight | 0.85 kg |
| Boundary Dimensions | 200(L) x 200(W) x 43(H) mm |
| Package Dimensions | 315(L) x 70(W) x 235(H) mm |
| Operating Temperature | -10℃ |
| Operating Humidity | 10%~90% RH (non-condensing) |
| Storage Temperature | -20℃ |
| Package Kit | Network Video Recorder, Screw Pack, Mouse, European Standard Power Adapter |
