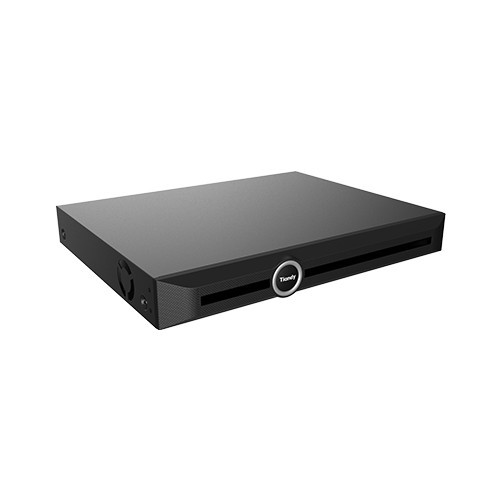

Tiandy TC-R3240 I/B/N/H/ V4.0 H.265 2HDD 40ch NVR Price In Dubai UAE
- ·Up to 40-ch IP camera accesses
·Incoming/Outgoing bandwidth: 400Mbps/400Mbps
·S+265, H.265, S+264, H.264 video formats
·Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×16
·16-ch synchronous playback
·Up to 10 TB capacity for each HDD
·Independent HDMI and VGA outputs
·HDMI output at up to 4K resolution
·2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
·S+ 265 compression effectively reduces the storage space by up to 75%
·Support cloud upgrade
Enquire on Whatsapp
Description
| Category | Specification |
|---|---|
| Video and Audio | |
| Access Channel | 40 |
| Incoming Bandwidth | 400 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Preview Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40 |
| Playback Decoding Capability | 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×16 |
| Third-party Camera Access | ONVIF, RTSP |
| HDMI Output | 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), 4K(3840×2160, 30Hz/60Hz) |
| VGA Output | 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) |
| Multi-screen Display | HDMI: 1-40, VGA: 1-40 |
| Audio Input | 1-channel, 3.5mm |
| Audio Output | 1-channel, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-channel, 3.5mm (via audio input) |
| Compression | |
| Video | S+265, H.265, S+264, H.264 |
| Audio | G711A, G711U, AAC, ADPCM_DIV4 |
| Stream Type | Video; Video & Audio |
| Network | |
| Network Protocol | ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, RTSP, SMB, SMTP, SNMP, SSH, SSL, TLSv1.2, TLSv1.3, TCP/IP, UDP, Unicast, UPnP |
| Mobile Phone Access | Android, iOS, P2P |
| System Compatibility | ONVIF (Profile S/T/G), RTSP, CGI, SDK |
| Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Record Playback | |
| Multi-channel Playback | 16 channels |
| Record Mode | Manual, Alarm, Schedule |
| Storage Method | Local HDD |
| Backup | USB storage, Network |
| Playback Functions | Play/Pause, Speed Control, Full Screen, Digital Zoom, Video Editing, Backup |
| Dual Stream Record | Yes |
| Alarm | |
| General Alarm | Motion Detection, Mask Alarm, Alarm Input (IPC/NVR), Manual Alarm |
| Exceptions Alarm | Video Loss, Network Issues, Disk Errors, Illegal Access, etc. |
| Intelligent Analytics | |
| AI by Camera | Tripwire, Face Detection, License Plate Recognition, Parking Guard, Smoke and Fire Detection, Heatmap, etc. |
| VCA Search | Heatmap, Early-warning, Behavior, License Plate Search, Safety Helmet Search, Face Search, etc. |
| Face Detection | |
| Face Attributes | Gender, Age, Glasses, Face Mask, Body Temp. |
| Face Recognition | Up to 300 face libraries, up to 100,000 base images |
| Storage | |
| HDD Capacity | Up to 10 TB per HDD |
| Disk Group | 2 Disk Groups |
| External Ports | |
| USB | 1×USB 2.0, 1×USB 3.0 |
| HDMI | 1×HDMI (supports up to 4K resolution output) |
| VGA | 1×VGA |
| Network Interface | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| SATA | 2×SATA interface |
| RS232 | 1×RS232 |
| RS485 | 1×RS485 |
| Alarm I/O | 16×TTL inputs, 4×relay outputs |
| General | |
| UI Language | Multiple (English, Spanish, Arabic, Russian, etc.) |
| Power Supply | DC 12V 3.3A |
| Power Consumption | <15W (without HDD) |
| Net Weight | 2.25 kg |
| Gross Weight | 3.85 kg |
| Operating Temperature | -10℃ to +55℃ |
| Operating Humidity | 10%~90%RH (non-condensing) |
| Package Kit | NVR, Mouse, Power Adapter, Power Cord, Screws |
