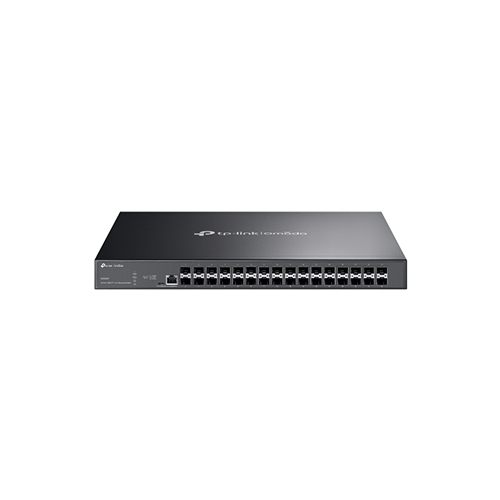

Tp-link Omada SX3032F 32-Port 10GE SFP+ L2+ Managed Switch Price in Dubai UAE
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Interface | 32× 1/10Gbps SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 2 internal fixed fans | |
| Physical Security Lock | Yes | |
| Power Supply | 1+1 Redundant Power Supply (internal), 100-240 V AC~50/60 Hz | |
| Dimensions (W x D x H) | 17.3×13.0×1.7 in (440×330×44 mm) | |
| Mounting | Rack Mountable | |
| Max Power Consumption | 49.4 W (220 V / 50 Hz) | |
| Performance | Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 24 Mbit | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, SP, WRR queue scheduling, bandwidth control, QoS remark actions |
| L2 and L2+ Features | Supports 128 IP Interfaces, Static Routing, Proxy ARP, DHCP Server, VLAN, Link Aggregation, STP, Mirroring | |
| L2 Multicast | Supports 4000 IGMP groups, IGMP Snooping, MLD Snooping, Multicast Filtering | |
| Advanced Features | Automatic Device Discovery, Batch Configuration, Intelligent Network Monitoring, Unified Configuration | |
| ISP Features | Protocols | L2PT, DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlow |
| VLAN | Max 4K VLAN Groups, 802.1Q Tagged VLAN, MAC VLAN, GVRP, VLAN VPN (QinQ) | |
| Security | Access Control Lists | Time-based, MAC and IP ACL, Packet Content ACL, Policy application |
| Security Features | IP-MAC-Port Binding, DHCP Snooping, DoS Defend, 802.1X, AAA support, Port Isolation | |
| Management | Omada App | Requires Omada Hardware Controller or Cloud-Based Controller |
| Centralized Management | Omada Cloud-Based, Hardware, or Software Controller | |
| Management Features | Web-based GUI, CLI, SNMP v1/v2c/v3, Dual Image, CPU Monitoring, SNTP, System Log | |
| Others | Certification | CE, FCC, RoHS |
| Package Contents | SX3032F Switch, 2× Power Cords, Quick Installation Guide, Rackmount Kit, Rubber Feet | |
| Environment | Operating Temperature: -5–45 °C; Storage Temperature: -40–70 °C; Humidity: 10–90% operating, 5–90% storage |
