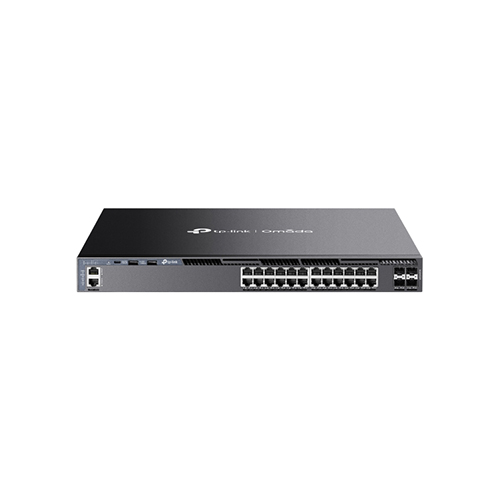

Tp-link Omada SG6428X 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots Price in Dubai UAE
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| HARDWARE FEATURES | Interface | 24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type-C Console Port, 1× RJ45 Management Port |
| Fan Quantity | Four Internal Fixed Fans | |
| Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) | |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) | |
| Mounting | Rackmountable | |
| Max Power Consumption | 28.4 W (220 V/50 Hz) | |
| Max Heat Dissipation | 96.91 BTU/hr (220 V/50 Hz) | |
| PERFORMANCE | Switching Capacity | 128 Gbps per Unit |
| Stacking | Max 8 stacks, 10G SFP+ Slot for stacking, Up to 80 Gbps (4 stack ports) | |
| Packet Forwarding Rate | 95.2 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 3 MB | |
| Jumbo Frame | 9 KB | |
| SOFTWARE FEATURES | Quality of Service | 8 Queues of Priority, Bandwidth Control, Voice VLAN, QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | Supports IPv4/IPv6 routing, Static Routing, RIP, OSPF, VRRP, DHCP Server/Relay | |
| L2 and L2+ Features | Link Aggregation, Spanning Tree Protocol, IGMP groups, Multicast support | |
| Advanced Features | Automatic Device Discovery, Batch Configuration, Intelligent Network Monitoring | |
| ISP Features | 802.3ah Ethernet Link OAM, Device Link Detect Protocol, sFlow | |
| VLAN | Max 4K VLAN Groups, 802.1Q Tagged VLAN, Voice VLAN, Private VLAN | |
| Security | Port Isolation, CPU-Defend, DHCP Snooping, 802.1X, Secure web management (HTTPS), SSH | |
| Management | Web-based GUI, SNMP, Zero-Touch Provisioning, Cable Diagnostics, System Log | |
| OTHERS | Package Contents | SG6428X Switch, 2× Power Cords, RJ45 Console Cable, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux | |
| Environment | Operating Temp: -5 °C to 50 °C @ 300 meters, -5 °C to 45 °C @ 2,000 meters, -5 °C to 40 °C @ 3,000 meters Storage Temp: -40 °C to 70 °C, Humidity: 10–90% RH (operating) |
