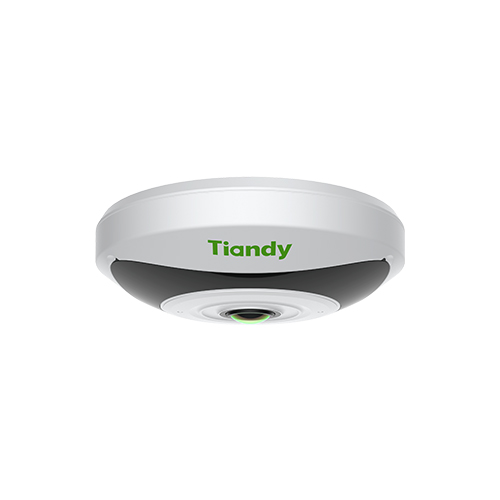

Tiandy TC-C35VN 5MP Fisheye Camera Price In Dubai UAE.
·Metal+plastic housing
·Up to 5MP,2592×1944@30fps
·S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
·Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
·IR range up to 30m
·Built-in Mic
·Support microSD/microSDHC/microSDXC card,up to 512GB
·Support smart surveillance
·Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
·DC12V±25%,Max. 8.5W, PoE:IEEE 802.3af,Max. 9.5W
Enquire on Whatsapp
Description
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7″ CMOS |
| Min. Illumination | Color: 0.02Lux @(F2.0, AGC ON) B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120dB |
| S/N Ratio | >39dB |
| Lens Type | Fixed focal lens |
| Focal Length | 1.4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | H: 180°; V: 180°; D: 180° |
| DORI Distance | Detect: 24m Observe: 9m Recognize: 4.8m Identify: 2.5m |
| IR LEDs | 3 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Video Compression | S+265, H.265, H.264B, H.264M, H.264H, Motion JPEG |
| Video Bit Rate | 32k ~ 16Mbps |
| Audio Compression | G.711A, G.711U, ADPCM_D, AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Max. Resolution | 5MP, 2592×1944 @ 30fps |
| Main Stream | PAL: 25fps (2592×1944, 2560×1440, 1920×1080, 1280×720) NTSC: 30fps (2592×1944, 2560×1440, 1920×1080, 1280×720) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Third Stream | PAL: 25fps (1920×1080, 1280×720) NTSC: 30fps (1920×1080, 1280×720) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region |
| Picture Overlay | 1*200×200 BMP 24 color bit image overlay |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| General Alarm | Motion Detection, Mask Alarm, Alarm Input |
| Exceptions Alarm | Voltage Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception |
| Linkage Method | Send Email, Trigger Sound, Trigger Recording, Trigger Capture, Notify Surveillance Center, Alarm Output |
| Video Analytics | Tripwire, Perimeter, Heatmap |
| Rules of Behavior Analyze | 8 |
| ANR | Yes |
| Protocols | HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP v1/v2/v3, DHCP, DNS, DDNS, Easy DDNS, NTP, SMTP, TLS v1.2, SSL, 802.1X, QoS, IPv4, IPv6, PPPoE, SSH, Unicast, Multicast, RTCP, ARP, SRTP, FTP, SFTP |
| System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, Milestone, RTSP, RTMP |
| Remote Connection | ≤ 2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Communication Interface | 1× RJ-45 (10/100 Base-T) |
| Audio I/O | 1 input, 1 output |
| Alarm I/O | 1-ch TTL input, 3mA, 3.3VDC; 1-ch TTL output, 30mA, 12VDC |
| Built-in Mic | Yes |
| Reset Button | Yes (Built-in) |
| On-board Storage | Supports microSD/microSDHC/microSDXC card, up to 512GB |
| RTC | Yes |
| Operating Temperature | -40°C to +65°C (-40°F to +149°F) |
| Operating Humidity | ≤ 95% RH |
| Storage Temperature | -40°C to +65°C (-40°F to +149°F) |
| Storage Humidity | 10% ~ 95% RH (non-condensing) |
| Power Supply | DC12V ±25%, Max. 8.5W; PoE: IEEE 802.3af, Max. 9.5W |
| Protection | Surge 4000V, ESD 6000V |
| Dimensions (L×W×H) | 122mm × 122mm × 39mm |
| Package Dimensions | 140mm × 140mm × 120mm |
| Gross Weight | 0.416kg |
