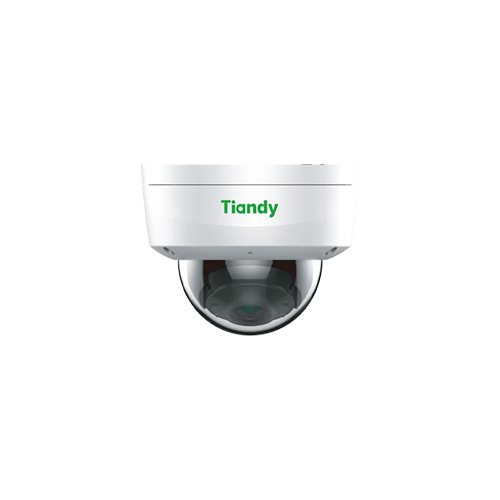

Tiandy TC-C32KN I3/E/Y/2.8mm 2MP Fixed IR Dome Camera Price In Dubai UAE.
- ·Plastic housing·Up to 2MP,1920×1080@30fps
·S+265/H.265/H.264B/H.264M/H.264H
·Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
·IR range up to 30m
·Built-in Mic
·Support microSD/microSDHC/microSDXC card,up to 512GB
·Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
·DC12V±25%,Max. 4.5W, PoE:IEEE 802.3af,Max. 5W
·IP66
Enquire on Whatsapp
Description
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Min. Illumination | Color: 0.02Lux @(F2.0, AGC ON) B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR (Digital Wide Dynamic Range) |
| S/N Ratio | >39dB |
| Angle Adjustment | 0350° (P); 070° (T); 0~350° (R) |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | H: 99.7°; V: 55.1°; D: 113.9° |
| DORI Distance | Detect: 38.6m Observe: 15.3m Recognize: 7.7m Identify: 3.8m |
| IR LEDs | 8 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| Video Compression | S+265, H.265, H.264B, H.264M, H.264H |
| Video Bit Rate | 32k ~ 6Mbps |
| Audio Compression | G.711A, G.711U, ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Max. Resolution | 2MP, 1920×1080 @ 30fps |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps (1920×1080, 1280×720, 640×480, 704×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 1 region, 1 line, with a maximum of 48 characters or 16 Chinese characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| General Alarm | Motion Detection, Mask Alarm |
| Exceptions Alarm | Disk Full, Disk R/W Error, IP Address Conflict |
| Linkage Method | Trigger Recording, Trigger Capture, Notify Surveillance Center, Alarm Output |
| Video Analytics | Tripwire, Perimeter |
| Rules of Behavior Analyze | 2 |
| ANR | Yes |
| Protocols | HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, FTP |
| System Compatibility | P2P (Mutually exclusive with Profile G), ONVIF (Profile S/T/G), SDK, CGI, Milestone, RTSP |
| Remote Connection | ≤ 2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Communication Interface | 1× RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| Reset Button | Yes (Built-in) |
| On-board Storage | Supports microSD/microSDHC/microSDXC card, up to 512GB |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | ≤ 95% RH |
| Storage Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Humidity | 10% ~ 95% RH (non-condensing) |
| Power Supply | DC12V ±25%, Max. 4.5W; PoE: IEEE 802.3af, Max. 5W |
| Protection | Surge 4000V, ESD 6000V, IP66 |
| Dimensions (L×W×H) | 120mm × 120mm × 96mm |
| Package Dimensions | 140mm × 140mm × 120mm |
| Gross Weight | 0.49kg |
