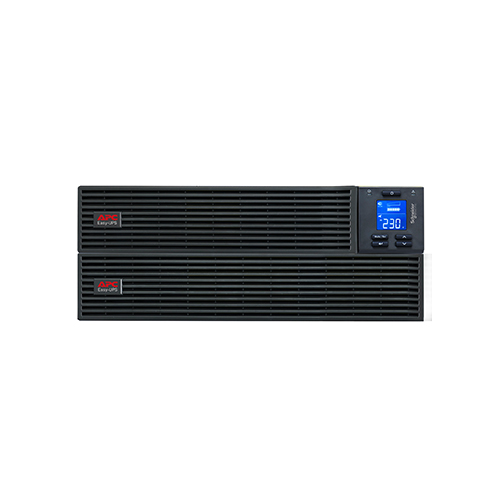

APC SRV3KRILRK Easy UPS ONLINE SRV RM Ext. Runtime 3000VA 230V with Rail kit Batt pack Price in Dubai UAE
Enquire on Whatsapp
Description
|
Specifications
|
||
|---|---|---|
| Model | SRV3KRILRK | |
| Product Line | APC Easy UPS Online SRV | |
| UPS Type / Topology | Double-conversion Online UPS | |
| Rated Power Capacity | 3000 VA / 2400 W | |
| Form Factor / Rack Height | Rack-mount, 4U | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | 160 – 280 V (normal operation range) | |
| Input Frequency Range | 40 – 70 Hz (auto-sensing) | |
| Input Connection | 1 × IEC 60320 C14 | |
| Nominal Output Voltage | 230 V AC | |
| Selectable Output Voltages | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz ± 3 Hz (synchronous to mains) | |
| Waveform Type | Pure sine wave | |
| Output Voltage Regulation (THD) | ~3% | |
| Crest Factor | 3:1 | |
| Efficiency (Full Load) | ~88% | |
| Bypass | Internal automatic & manual bypass | |
| Output Connections | 6 × IEC 60320 C13 + 1 × IEC 60320 C19 | |
| Battery Type | Sealed lead-acid (VRLA) | |
| Battery System Voltage | 72 V | |
| Typical Recharge Time | ~4–5.5 hours | |
| Extended Battery Support | Supports optional external battery packs (e.g., SRV72BP-9A) | |
| Approx. Runtime (Half Load) | ~30 minutes | |
| Approx. Runtime (Full Load) | ~12–13 minutes | |
| Display / Interface | Multifunction LCD status display | |
| Communication Ports | USB + RS-232 | |
| Surge Protection | Built-in surge energy rating (approx. 600 J) | |
| Operating Temperature Range | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95% (non-condensing) | |
| Certifications / Standards | CE, IEC 62040-1-1, IEC 62040-1-2, EAC | |
| Net Weight (Approx.) | ~52 kg (UPS + base battery pack) | |
| Rail Kit Included | Yes (rack mounting rails provided) | |
