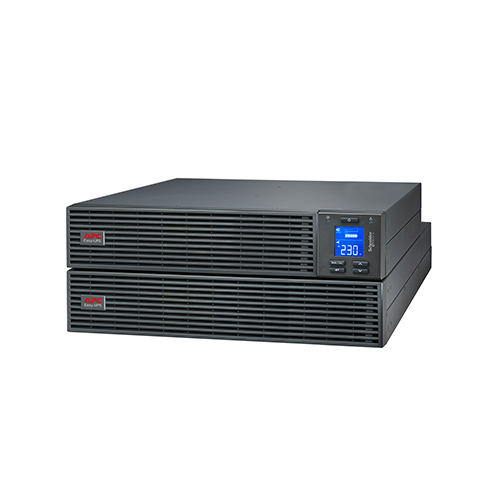

APC SRV3KRIL Easy UPS ONLINE SRV RM Ext. Runtime 3000VA 230V with Batt pack Price in Dubai UAE
Enquire on Whatsapp
Description
|
Specifications
|
||
|---|---|---|
| Model | SRV3KRIL / SRV3KRILRK (Extended runtime with battery pack) | |
| Product Line | APC Easy UPS Online SRV | |
| UPS Type / Topology | Online Double-Conversion | |
| Form Factor | Rack-Mount (typically 4U) | |
| Rated Capacity | 3000 VA / 2400 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | ~110–285 V AC | |
| Input Frequency Range | 40–70 Hz (auto-sensing) | |
| Input Connection | IEC 60320 C14 | |
| Nominal Output Voltage | 230 V AC | |
| Selectable Output Voltages | 220 / 230 / 240 V | |
| Output Frequency | 50/60 Hz ± 3 Hz | |
| Waveform Type | Pure Sine Wave | |
| Output Voltage Regulation | Typically ≤ 3% (THD) | |
| Crest Factor | 3:1 | |
| Bypass | Internal automatic and manual bypass | |
| Output Connections | 6 × IEC C13 + 1 × IEC C19 | |
| Efficiency (Full Load) | ~88% | |
| Battery Type | Sealed Lead-Acid (VRLA) | |
| Nominal Battery Voltage | 72 V | |
| Recharge Time | ~4–5.5 hours | |
| Extended Runtime Supported | With external battery packs (e.g., SRV72BP-series) | |
| Typical Runtime (Approx.) | ~12–13 min @ full load (with base batteries) | |
| Management / Communication | LCD status display, USB, RS-232 | |
| Surge Protection | Built-in surge protection | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95% (non-condensing) | |
| Rack Height | ~4U | |
| Certifications / Standards | IEC 62040-1-1, IEC 62040-1-2, CE, RoHS | |
| Typical Weight (UPS + batteries) | Varies with battery configuration | |
| Optional External Battery Pack | Supported (e.g., APC SRV72BP-9A type packs) | |
