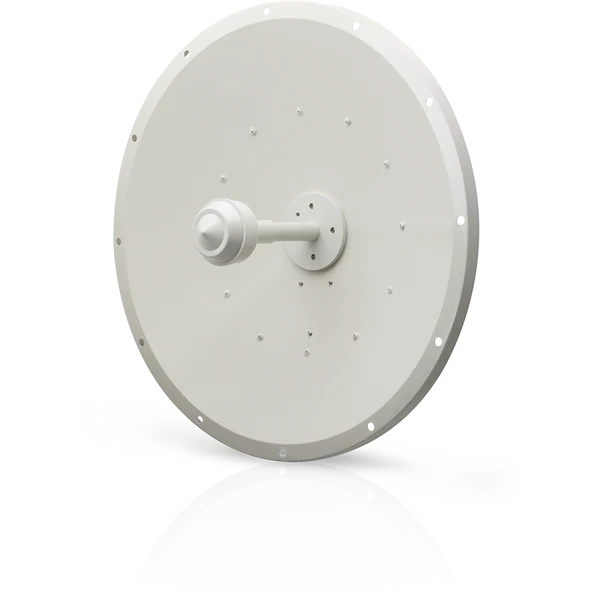

UniFi RD-2G24 2.4GHz RocketDish, 24dBi, Rocket Kit Supplier in Dubai UAE
Pair a RocketDishTM antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish antenna delivers 2×2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.
Enquire on Whatsapp
Description
| RD-2G24 | |
|---|---|
| Dimensions | 650 x 650 x 295 mm (25.6 x 25.6 x 11.61″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 2.3 – 2.7 GHz |
| Gain | 24 dBi |
| HPOL Beamwidth | 6.6° (3 dB) |
| VPOL Beamwidth | 6.8° (3 dB) |
| F/B Ratio | 28 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
