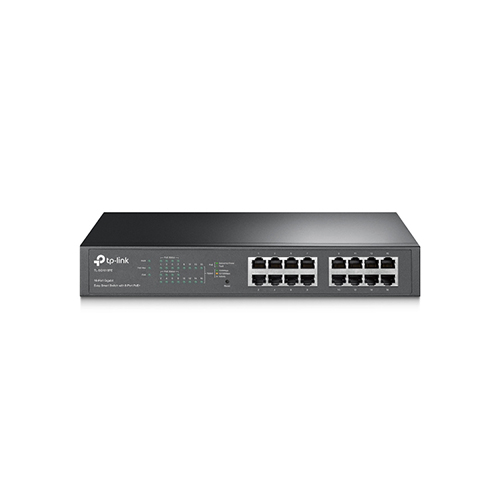

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ Price in Dubai, UAE
- 16× 10/100/1000Mbps RJ45 ports
- Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
- Silent Operation.
Enquire on Whatsapp
Description
| Category | Details | Specifications |
|---|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p | |
| Interface | 16× 10/100/1000 Mbps RJ45 Ports | AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max 100m) | 100BASE-TX: UTP category 5, 5e cable (max 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m) EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | Fanless | |
| Physical Security Lock | Yes | |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant | PoE Ports: Port 1 to Port 8 PoE Power Budget: 150 W |
| Dimensions | 11.6×7.1×1.7 in (294×180×44 mm) | Rack Mountable/Desktop |
| Max Power Consumption | 13.07 W (no PD connected) 173.88 W (with 150 W PD connected) |
|
| Max Heat Dissipation | 44.438 BTU/h (no PD connected) 591.192 BTU/h (with 150 W PD connected) |
|
| Performance | Switching Capacity: 32 Gbps | Packet Forwarding Rate: 23.8 Mbps MAC Address Table: 8K Packet Buffer Memory: 4.1 Mbit Jumbo Frame: 10 KB |
| Quality of Service | Support Port-Based/802.1p/DSCP priority | Support for 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 | Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) | MTU/Port/Tag VLAN |
| PoE | PoE Management | Extend Mode PoE Auto Recovery |
| Management | Web-based GUI | Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward | |
| Certification | FCC, CE, RoHS | |
| Package Contents | TL-SG1016PE | Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility | |
| Environment | Operating Temp: 0–45 ℃ (32–113 ℉) | Storage Temp: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
