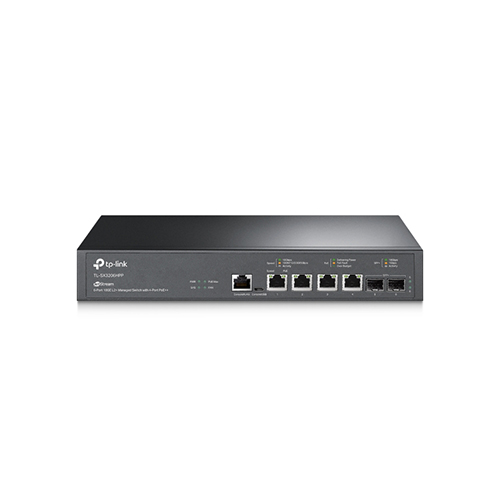

Tp-link SX3206HPP JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Price in Dubai UAE
- 4× 10G PoE++ ports with up to 60 W PoE output per port
- 2× 10G SFP+ slots
- 200 W total PoE budget
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Desktop / Rack Mounting.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Interface | 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports, 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 2 | |
| Physical Security Lock | Yes | |
| Power Supply | 100-240 V AC~50/60 Hz | |
| PoE Ports (RJ45) | 4 Ports, up to 60 W per port, Power Budget: 200 W* | |
| Dimensions (W x D x H) | 11.6×7.1×1.7 in (294×180×44 mm) | |
| Mounting | Rack Mountable, Desktop | |
| Max Power Consumption | 244.90 W (110V/60Hz) (with 200 W PD connected) | |
| Max Heat Dissipation | 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected) | |
| Performance | Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 16 Mbit | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, SP, WRR queue scheduling, bandwidth control, QoS remark actions |
| L2 and L2+ Features | 128 IP Interfaces, Static Routing, Proxy ARP, DHCP Server, VLAN, Link Aggregation, STP, Mirroring | |
| L2 Multicast | Supports 1000 IGMP groups, IGMP Snooping, MLD Snooping, Multicast Filtering | |
| Advanced Features | Automatic Device Discovery, Batch Configuration, Intelligent Network Monitoring, Abnormal Event Warnings | |
| ISP Features | Protocols | L2PT, DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, sFlow, DDM |
| VLAN | Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN, GVRP, VLAN VPN | |
| Security | Access Control Lists | Time-based, MAC and IP ACL, Packet Content ACL, Policy application |
| Security Features | IP-MAC-Port Binding, DHCP Snooping, DoS Defend, 802.1X, AAA support, Port Isolation | |
| Management | Omada App | Requires Omada Hardware Controller or Cloud-Based Controller |
| Centralized Management | Omada Cloud-Based, Hardware, or Software Controller | |
| Management Features | Web-based GUI, CLI, SNMP v1/v2c/v3, Dual Image, CPU Monitoring, SNTP, System Log | |
| Others | Certification | CE, FCC, RoHS |
| Package Contents | SX3206HPP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet | |
| Environment | Operating Temperature: 0–50 °C; Storage Temperature: -40–70 °C; Humidity: 10–90% operating, 5–90% storage |
