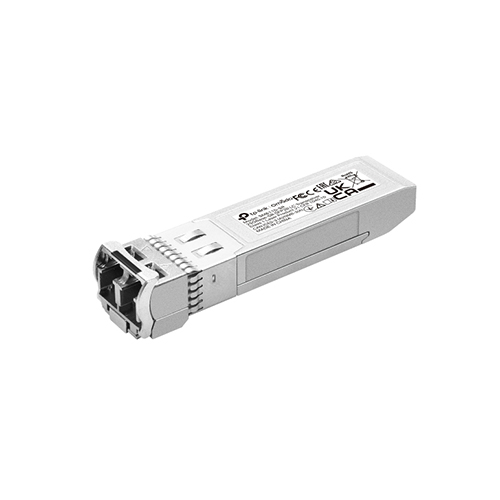

TP-LINK SM6110-SR Omada 25GBase-SR SFP28 LC Transceiver in Dubai UAE.
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
Enquire on Whatsapp
Description
| Category | Specification | Details |
|---|---|---|
| PACKAGE CONTENTS | Package Contents | SM6110-SR, Installation Guide |
| HARDWARE FEATURES | DDM | Yes |
| SFP-MSA | Yes | |
| Hot Swappable | Yes | |
| Dimensions (W x D x H) | 2.24 × 0.55 × 0.53 in (57 × 14 × 13.45 mm) | |
| TRANSCEIVER | Standards and Protocols | IEEE 802.3ae, 802.3by, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP |
| Wavelength | 850 nm | |
| Power Supply | 3.3 V | |
| Fiber Type | 50/125 μm or 62.5/125 μm Multi-mode | |
| Max. Cable Length | 70 m (OM3) @ 25.78 Gbps, 100 m (OM4) @ 25.78 Gbps, 300 m (OM3) @ 10.31 Gbps | |
| Supported Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps | |
| Connector | Duplex LC/UPC | |
| Regulatory Compliance | CE, FCC, RoHS | |
| ENVIRONMENTAL | Operating Temperature | 0°C to 70°C (32–158 °F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Operating Humidity | 10% to 90% RH, Non-Condensing | |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
