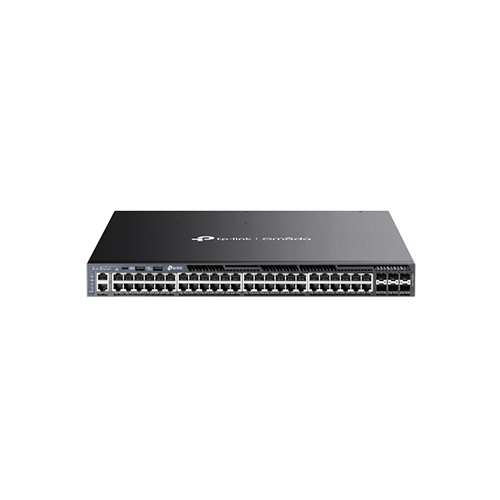

Tp-link SG6654XHP Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots Price in Dubai UAE
- 48× Gigabit RJ45 PoE+ ports
- 6× 10 Gbps SFP+ slots
- Up to 1440 W total PoE budget*
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Interface | 48× 10/100/1000 Mbps PoE+ RJ45 Ports, 6× 10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type-C Console Port, 1× RJ45 Management Port |
| Fan Quantity | Four field-replaceable and hot-swappable fans | |
| Power Supply | Two field-replaceable and hot-swappable power supply modules (100–240 VAC, 50/60 Hz) | |
| PoE Ports (RJ45) | 48 Ports, up to 30 W per port, PoE Power Budget: up to 1440 W* | |
| Dimensions (W x D x H) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) | |
| Mounting | Rackmountable | |
| Max Power Consumption | 67.24 W (no PD connected), 1767.7 W (with 1440W PD) | |
| Max Heat Dissipation | 229.29 BTU/hr (no PD), 6,027.86 BTU/hr (with 1440W PD) | |
| Performance | Switching Capacity | 216 Gbps per unit |
| Stacking | Up to 8 switches, 10G SFP+ slots for stacking, stack bandwidth up to 120 Gbps | |
| Packet Forwarding Rate | 160.7 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 3 MB | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 8 Queues of Priority, Bandwidth Control, Voice VLAN, etc. |
| L3 Features | Supports static routing, RIP, OSPF, DHCP server, etc. | |
| L2 and L2+ Features | Link aggregation, Spanning Tree, IGMP support, etc. | |
| Advanced Features | Automatic device discovery, batch configuration, intelligent network monitoring, etc. | |
| VLAN | Max 4K VLAN groups, supports 802.1Q, GVRP, and voice VLAN | |
| Security | Port isolation, ARP inspection, 802.1X support, etc. | |
| Management | Omada App | Yes, requires Omada Controller |
| Centralized Management | Omada Cloud-Based Controller, Hardware Controller, Software Controller | |
| Cloud Access | Yes, requires appropriate controller | |
| Management Features | Web-based GUI, CLI, SNMP, dual image/configuration, etc. | |
| Others | Package Contents | Switch, power cord, console cables, rackmount kit |
| System Requirements | Compatible with Windows, macOS, UNIX, Linux | |
| Environment | Operating Temp: -5 °C to 45 °C, Storage Temp: -40 °C to 70 °C |
