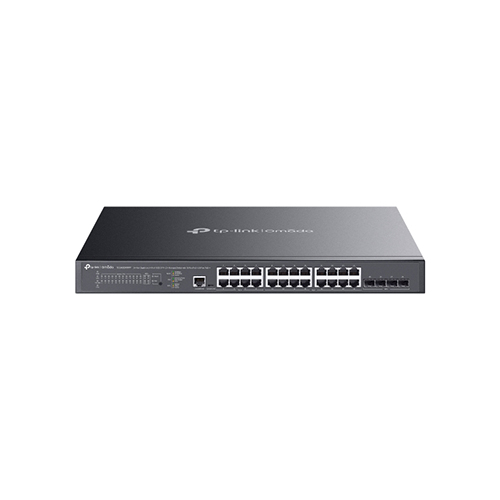

Tp-link SG3428XMPP Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Price in Dubai UAE
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Interface | 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 | |
| Physical Security Lock | Yes | |
| Power Supply | 100-240 V AC~50/60 Hz | |
| PoE Ports (RJ45) | 802.3at/af/bt compliant, Ports 1-8 (up to 90 W), Ports 9-24 (up to 30 W), Power Budget: 500 W | |
| Dimensions (W x D x H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) | |
| Mounting | Rack Mountable | |
| Max Power Consumption | 605.5 W (110V/60Hz, with 500W PD connected) | |
| Max Heat Dissipation | 2064.96 BTU/hr (110 V/60 Hz, with 500W PD connected) | |
| Performance | Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps | |
| MAC Address Table | 16 K | |
| Packet Buffer Memory | 12 Mbit | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, SP/WRR queue scheduling, bandwidth control, QoS remark actions |
| L2 and L2+ Features | 128 IP Interfaces, Static Routing (48 routes), Proxy ARP, DHCP Server, VLAN, Link Aggregation | |
| L2 Multicast | Supports 1000 IGMP groups, IGMP Snooping, MLD Snooping, Multicast Filtering | |
| Advanced Features | Automatic Device Discovery, Batch Configuration, Intelligent Network Monitoring, Abnormal Event Warnings | |
| ISP Features | ISP Capabilities | L2PT, DLDP, PPPoE ID Insertion, ERPS, Ethernet Link OAM, DDM, sFlow |
| VLAN | VLAN Group | Max 4K VLAN Groups, 802.1Q Tagged VLAN, GVRP, VLAN VPN |
| Access Control | Access Control Lists | Time-based ACL, MAC ACL, IP ACL, Combined ACL, Policy application |
| Security | Security Features | IP-MAC-Port Binding, DHCP Snooping, DoS Defend, 802.1X, AAA support |
| Management | Omada App | Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller |
| Centralized Management | Omada Cloud-Based, Hardware Controller, or Software Controller | |
| Management Features | Web-based GUI, CLI, SNMP v1/v2c/v3, Dual Image, CPU Monitoring, SNTP, System Log | |
| Others | Certification | CE, FCC |
| Package Contents | SG3428XMPP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet | |
| Environment | Operating Temperature: 0–40 °C; Storage Temperature: -40–70 °C; Humidity: 10–90% operating, 5–90% storage |
