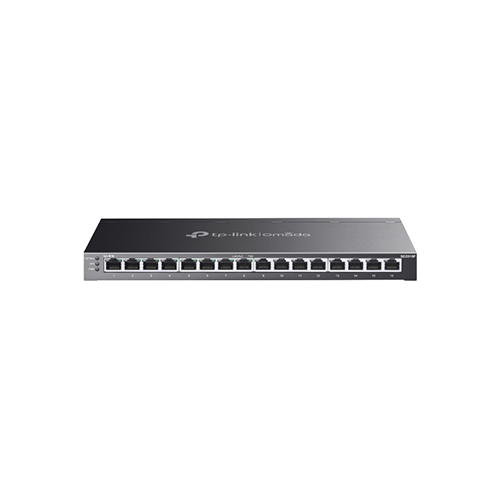

Tp-link SG2016P Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ Price in Dubai UAE
- 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
- 120 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Interface | 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+); Auto-Negotiation/MDI/MDIX |
| Fan Quantity | Fanless | |
| Physical Security Lock | Yes | |
| Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) | |
| PoE Ports (RJ45) | 8 Ports; Power Supply: 120 W; Compliant with 802.3af/at | |
| Dimensions | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) | |
| Mounting | Desktop/Wall-Mounting | |
| Max Power Consumption | 146.5 W (110 V/60 Hz) (with 120 W PD connected) | |
| Max Heat Dissipation | 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) | |
| Performance | Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 802.1p CoS/DSCP priority; 8 priority queues; Storm Control |
| L2 and L2+ Features | 16 IP Interfaces; Static Routing; DHCP Server; VLAN; Spanning Tree Protocol | |
| Advanced Features | Automatic Device Discovery; Batch Configuration; Unified Configuration | |
| VLAN | Max 4K VLAN Groups; 802.1Q Tagged VLAN; Voice VLAN | |
| Access Control List | Support up to 230 entries; Time-based ACLs; MAC/IP/IPv6 ACLs | |
| Security | IP-MAC-Port Binding; 802.1X; DoS Defend; Port Security | |
| IPv6 | IPv6 Static Routing; Multicast Listener Discovery; IPv6 applications | |
| MIBs | MIB II, Bridge MIB, RMON MIB, TP-Link private MIBs | |
| Management | Omada App | Yes (Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller) |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller | |
| Cloud Access | Yes (Requires Omada Hardware or Cloud-Based Controller) | |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) | |
| Management Features | Web-based GUI; CLI via telnet; SNMP; Dual Image/Configuration; Cable Diagnostics | |
| Others | Certification | CE, FCC, RoHS |
| Package Contents | SG2016P Switch; Power Adapter; Installation Guide; Rubber Feet | |
| System Requirements | Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10, 11; MAC OS; NetWare; UNIX/Linux | |
| Environment | Operating Temp: 0–40 ℃; Storage Temp: -40–70 ℃; Operating Humidity: 10–90% RH |
