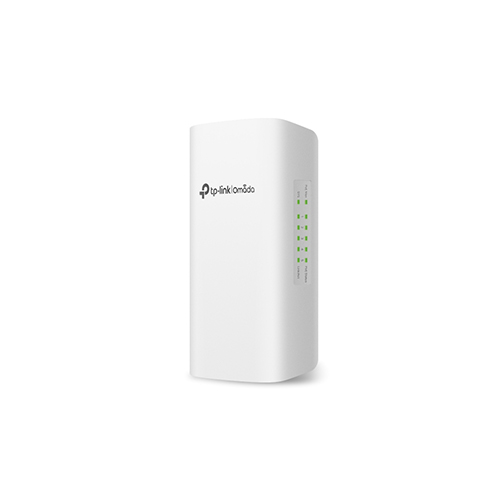

Tp-link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out Price in Dubai UAE
- Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
- Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
- Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Hardware Features | Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x |
| Interface | 1× 10/100/1000 Mbps RJ45 PoE In; 4× 10/100/1000 Mbps RJ45 PoE Out | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 (max 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above (max 100m) | |
| Fan Quantity | Fanless | |
| Power Supply | Obtain Power from 802.3af/at/bt PoE Source | |
| PoE Power Budget | 64 W (802.3bt Type 4), 44 W (Type 3), 19 W (802.3at), 6 W (802.3af) | |
| Dimensions | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) | |
| Max Power Consumption | 71.5 W (when powered by 802.3bt Type 4 (90 W)) | |
| Max Heat Dissipation | 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) | |
| Performance | Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| Software Features | Quality of Service | 802.1p CoS/DSCP priority; 8 priority queues; Storm Control |
| L2 and L2+ Features | 16 IP Interfaces; Static Routing; DHCP Server; VLAN; Spanning Tree Protocol | |
| Advanced Features | Automatic Device Discovery; Batch Configuration; Unified Configuration | |
| IPv6 Support | IPv6 Dual IPv4/IPv6; Multicast Listener Discovery; IPv6 applications | |
| VLAN | Max 4K VLAN Groups; 802.1Q Tagged VLAN; Voice VLAN | |
| Access Control List | Support up to 230 entries; Time-based ACLs; MAC/IP/IPv6 ACLs | |
| Security | AAA; 802.1X; DoS Defend; Port Security | |
| MIBs | MIB II, Bridge MIB, RMON MIB, TP-Link private MIBs | |
| Management | Omada App | Yes (Requires Omada Cloud-Based, Hardware, or Software Controller) |
| Centralized Management | Omada Cloud-Based, Hardware, or Software Controller | |
| Cloud Access | Yes (Requires Omada Cloud-Based or Hardware Controller) | |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) | |
| Management Features | Web-based GUI; CLI via telnet; SNMP; Dual Image/Configuration; Cable Diagnostics | |
| Others | Certification | CE, FCC, RoHS |
| Package Contents | SG2005P-PD; Mounting Kits; Installation Guide | |
| System Requirements | Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10, 11; MAC OS; NetWare; UNIX/Linux | |
| Environment | Operating Temp: -40 to 60 °C; Storage Temp: -40 to 70 °C; Operating Humidity: 10–90% RH |
