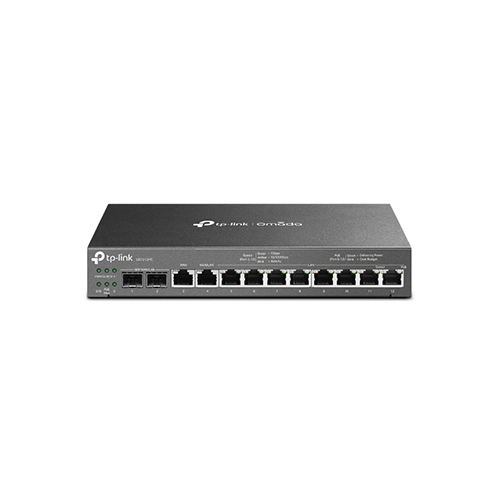

Tp-link ER7212PC Omada 3-in-1 Gigabit VPN Router Price in Dubai UAE
- 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
- Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
- Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
- 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
- Centralized Management: Cloud access and the Omada app offer convenience and easy management.
- Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
- Easy Installation: Fanless and compact design for desktop and wall mounting.
Enquire on Whatsapp
Description
| Category | Feature | Details |
|---|---|---|
| Security | Access Control | Source/Destination IP Based Access Control |
| Filtering | URL Filtering | |
| ARP Inspection | – | |
| Attack Defense | TCP/UDP/ICMP Flood Defense; Block TCP Scan; Block Ping from WAN | |
| Hardware Features | Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q; TCP/IP, DHCP, ICMP, NAT, various VPNs |
| Interface | 2 Gigabit SFP WAN/LAN ports; 1 Gigabit WAN port; 1 Gigabit LAN/WAN port; 8 Gigabit LAN ports | |
| Network Media | UTP/STP cable support (Max 100 m) | |
| Fan Quantity | Fanless | |
| Power Supply | 53.5VDC/2.43A Adapter | |
| PoE Budget | 8 ports PoE+ output; 110 W PoE Budget | |
| Flash/DRAM | 8Mb NOR + 4 GB EMMC; 1 GB DDR3 | |
| LED Indicators | PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) | |
| Dimensions | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) | |
| Protection | 4 kV surge protection | |
| Enclosure | Steel | |
| Mounting | Desktop/Wall-mount | |
| Max Power Consumption | 133.2W with PoE Max; 13.88W without PoE | |
| Performance | Concurrent Sessions | 24,980 |
| New Sessions/Second | 1,900 | |
| NAT Performance | Static IP: 935.5 Mbps / 942.1 Mbps; DHCP: 940.2 Mbps / 941.7 Mbps; PPPoE: 913.1 Mbps / 935.2 Mbps | |
| IPsec VPN Throughput (AES256) | 168.5 Mbps | |
| OpenVPN | 34 Mbps | |
| L2TP VPN Throughput | Unencrypted: 845.3 Mbps; Encrypted: 333.2 Mbps | |
| PPTP VPN Throughput | Unencrypted: 1012.6 Mbps; Encrypted: 401.4 Mbps | |
| Packet Forwarding Rate | 66 Byte: 154,069 pps / 156,977 pps; 1,518 Byte: 81,193 pps | |
| Basic Functions | WAN Connection Type | Static IP, Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Modify WAN MAC Address | |
| DHCP | DHCP Server, Address Reservation, Multi-IP Interfaces, Multi-Net DHCP | |
| IPv6 Support | Yes | |
| VLAN | 802.1Q VLAN | |
| IPTV | IGMP v2/v3 Proxy | |
| Advanced Functions | ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing; Policy Routing | |
| Bandwidth Control | IP/Port-based Bandwidth Control | |
| Load Balance | Intelligent Load Balance; Application Optimized Routing; Link Backup | |
| NAT | Multi-Net NAT; Virtual Server; NAT-DMZ; Various ALG | |
| Session Limit | IP-based Session Limit | |
| VPN | SSL VPN | – |
| IPsec VPN | 20 IPSec VPN Tunnels; LAN-to-LAN, Client-to-LAN; AES128, AES192, AES256 Encryption Algorithms | |
| PPTP VPN | PPTP Server; Client (10); 16 Tunnels; PPTP with MPPE Encryption | |
| L2TP VPN | L2TP Server; Client (10); 16 Tunnels; L2TP over IPSec | |
| OpenVPN | OpenVPN Server; Client (10); 16 OpenVPN Tunnels | |
| Authentication | Web Authentication | No Authentication, Simple Password, Hotspot options, External RADIUS |
| Management | Omada App | Yes |
| Centralized Management | Management of up to 2 Omada switches and 10 Omada access points | |
| Cloud Access | Yes | |
| Service | Dynamic DNS (Dyndns, No-IP) | |
| Maintenance | Web Management Interface; Remote Management; SNMP Support; Syslog | |
| Zero-Touch Provisioning | – | |
| Management Features | Automatic Device Discovery; Network Monitoring; Abnormal Event Warnings; Unified Configuration | |
| Others | Certification | CE, FCC, RoHS |
| Package Contents | ER7212PC; Power Adapter; Power Cord; Quick Installation Guide | |
| System Requirements | Windows 98SE, NT, 2000, XP, Vista, 7, 8, 10; MAC OS, NetWare, UNIX/Linux | |
| Environment | Operating Temp: 0–45 °C; Storage Temp: -40–70 °C; Operating Humidity: 10%–90% RH |
