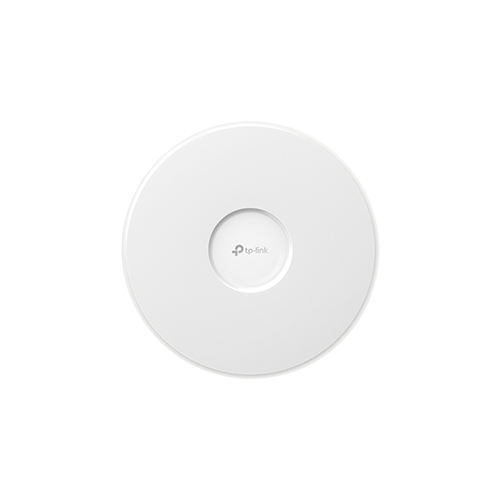

TP-LINK EAP683 UR AX6000 Ceiling Mount WiFi 6 Access Point Price in Dubai UAE
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
Enquire on Whatsapp
Description
| Feature | Specification | Notes |
|---|---|---|
| HARDWARE FEATURES | ||
| Interface | 1× 2.5 Gigabit PoE+ Port | High-speed connectivity. |
| Button | Reset | Simple reset functionality. |
| Power Supply | • 802.3at PoE • 12 V / 2 A DC |
Power adapter not included. |
| Power Consumption | • EU: 20.43W • US: 23.69W |
Different ratings for regions. |
| Dimensions | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) | Compact design. |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
Enhanced signal coverage. |
| Bluetooth | V5.2 | Latest Bluetooth technology. |
| Mounting | Ceiling / Wall Mounting (Kits included) | Versatile installation options. |
| WIRELESS FEATURES | ||
| Coverage | 185㎡ (2000 ft²) | Suitable for large areas. |
| Concurrent Clients | 510+ | Supports a high number of devices. |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a | Broad compatibility. |
| Frequency | 2.4 GHz and 5 GHz | Dual-band operation. |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
High throughput capabilities. |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control • QoS (WMM) • MU-MIMO (44 MU-MIMO DL&UL)<br>• MIMO (44 for both bands) • HE160 (160 MHz Bandwidth) • Seamless Roaming (802.11k/v/r) • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Advanced features for optimized performance. |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA/WPA2/WPA3 Personal/Enterprise |
Robust security measures. |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <28 dBm (5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
Controlled transmission power for compliance. |
| MANAGEMENT | ||
| Omada App | Yes | Mobile management capability. |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
Flexible management options. |
| Cloud Access | Yes (requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) | Remote management functionality. |
| Email Alerts | Yes | Notification system for updates. |
| LED ON/OFF Control | Yes | Customizable LED settings. |
| Management MAC Access Control | Yes | Enhanced security management. |
| SNMP | v1, v2c, v3 | Standard network management protocol. |
| System Logging | Local/Remote Syslog | Logging options for troubleshooting. |
| SSH | Yes | Secure remote access. |
| Web-based Management | HTTP/HTTPS | User-friendly management interface. |
| L3 Management | Yes | Layer 3 management capability. |
| Multi-site Management | Yes | Manage multiple locations easily. |
| Management VLAN | Yes | Segregation of management traffic. |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) | Simplified setup process. |
| OTHERS | ||
| Certification | CE, FCC, RoHS | Compliance with international standards. |
| Package Contents | • EAP683 UR • Ceiling/Wall Mounting Kits • Installation Guide |
Complete installation package. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux | Compatible with multiple operating systems. |
| Environment | ||
| Operating Temperature | 0–40 ℃ (32–104 ℉) | Standard operating range. |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) | Wide temperature tolerance. |
| Operating Humidity | 10–90% RH non-condensing | Suitable for various environments. |
| Storage Humidity | 5–90% RH non-condensing | Suitable for various environments. |
