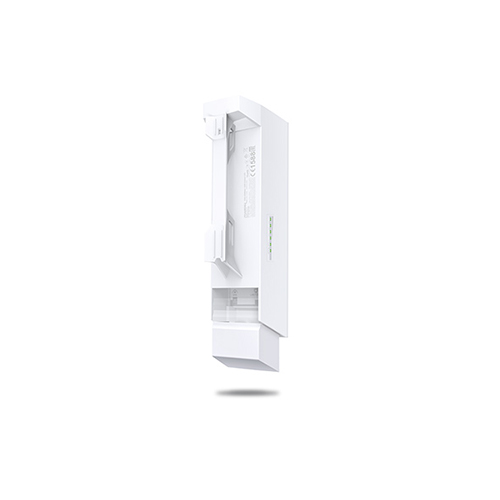

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Price in Dubai UAE
- Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.
Enquire on Whatsapp
Description
| Feature | Description |
|---|---|
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 x 10/100Mbps Shielded Ethernet Port (Passive PoE in) |
| 1 x Grounding Terminal | |
| 1 x Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Power Consumption: 10.5 Watts Max | |
| (Note: Power drawn increases with cable length) | |
| Dimensions (W x D x H) | 8.8 x 3.1 x 2.4 in |
| Antenna Type | Built-in 9dBi 2×2 Dual-polarized Directional Antenna |
| Beam Width: 65° (H-Plane) / 35° (E-Plane) | |
| Protection | 15KV ESD Protection, 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material, IPX5 waterproof Certification |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic), 144.4Mbps (20MHz, Dynamic), |
| 72.2Mbps (10MHz, Dynamic), 36.1Mbps (5MHz, Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (1dBm step adjustable) |
| Wireless Configurations | Pharos MAXtream TDMA Technology, 802.11b/g/n modes |
| Selectable Channel Width: 5/10/20/40MHz, Automatic Channel Selection | |
| Transmission Power Control, Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only) | |
| WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable, Wireless MAC Address Filter | |
| Advanced settings: Beacon Interval/RTS Threshold/Fragmentation | |
| Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Management | Pharos Control app, HTTP/HTTPS Web-based, SNMP Agent (v2c), SSH Server |
| System Log, Ping Watch Dog, Dynamic DDNS | |
| System Tools | Wireless Signal Quality Indicators, Spectrum Analyzer, Speed Test |
| Ping, Traceroute, Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | |
| System-level Optimizations for multicast, Hardware watchdog | |
| POE Adapter Dimensions | 4.3 x 2.2 x 1.3 in |
| POE Adapter Interfaces | 1 AC Jack with Earth Ground, 2 x 10/100Mbps Shielded Ethernet Ports |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max |
| POE Adapter Efficiency | > 80% |
| POE Adapter Certifications | FCC |
| Certifications | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE, 24VDC Passive PoE Adapter, Pole Mounting Straps |
| AC Power Cord, Installation Guide | |
| Environment Operating Temperature | -40℃~70℃ (-40℉~158℉) |
| Environment Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~95% non-condensing |
