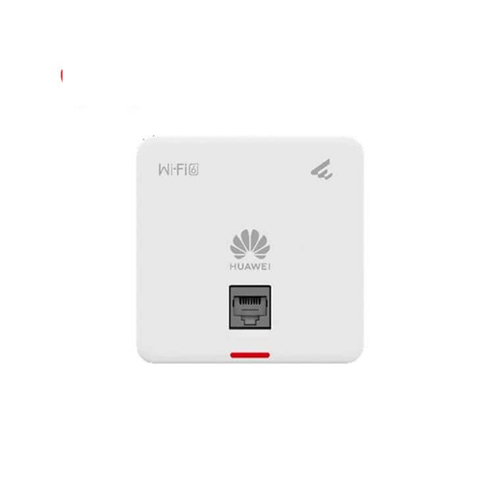

Huawei AP160 Access Point Price in Dubai UAE
Enquire on Whatsapp
Description
|
Specifications
|
||
|---|---|---|
| Part Number | 50086816 | |
| Model | AP160 | |
| First Supported Version | V200R023C00 | |
| Installation Type | Junction Box | |
| Dimensions without Packaging (H x W x D) | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) | |
| Dimensions with Packaging (H x W x D) | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) | |
| Weight without Packaging | 0.14 kg (0.31 lb) | |
| Weight with Packaging | 0.24 kg (0.53 lb) | |
| Storage | NAND Flash 256 MB | |
| Console Port | None | |
| Maximum Power Consumption | 9.1 W | |
| Maximum Heat Dissipation | 29.5 BTU/hour | |
| Power Supply Mode | PoE | |
| Input Voltage Range | PoE: 802.3af | |
| Service Port Surge Protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B |
|
| Maximum Number of Physical Ports | GE (RJ45) x 2, 10M/100M/1000M auto-sensing | |
| Long-Term Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) | |
| Long-Term Operating Relative Humidity | 5% RH to 95% RH, non-condensing | |
| Long-Term Operating Altitude | –60 m to +5000 m (–196.85 ft to +16404.20 ft) | |
| Atmospheric Pressure | 53 kPa – 106 kPa ETSI 300 019-2-3 | |
| Ground | Floating ground | |
| BLE | Not supported | |
| Radio Number | 2 | |
| Operating Frequency Band | 2.4 GHz, 5 GHz | |
| MIMO Spatial Streams | Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 |
|
| Wi-Fi Standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
|
| Radio Interface | Built-in smart antennas | |
| Antenna Gain | 2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain) |
|
| Maximum Transmit Power | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
|
| Signal Radio Transmit Power [dBm] | 2.4 GHz: 0 dBm to 17 dBm/chain 5 GHz: 0 dBm to 17 dBm/chain |
|
| MTBF (Mean Time Between Failures) | 446 years | |
| MTTR (Mean Time to Repair) | 2 hours | |
| Frequency Stability [ppm] | +/- 20 | |
| 802.3bt Power Supply Description | No function is limited | |
| 802.3at Power Supply Description | No function is limited | |
| 802.3af Power Supply Description | No function is limited | |
| DC Power Supply Description | Not supported | |
