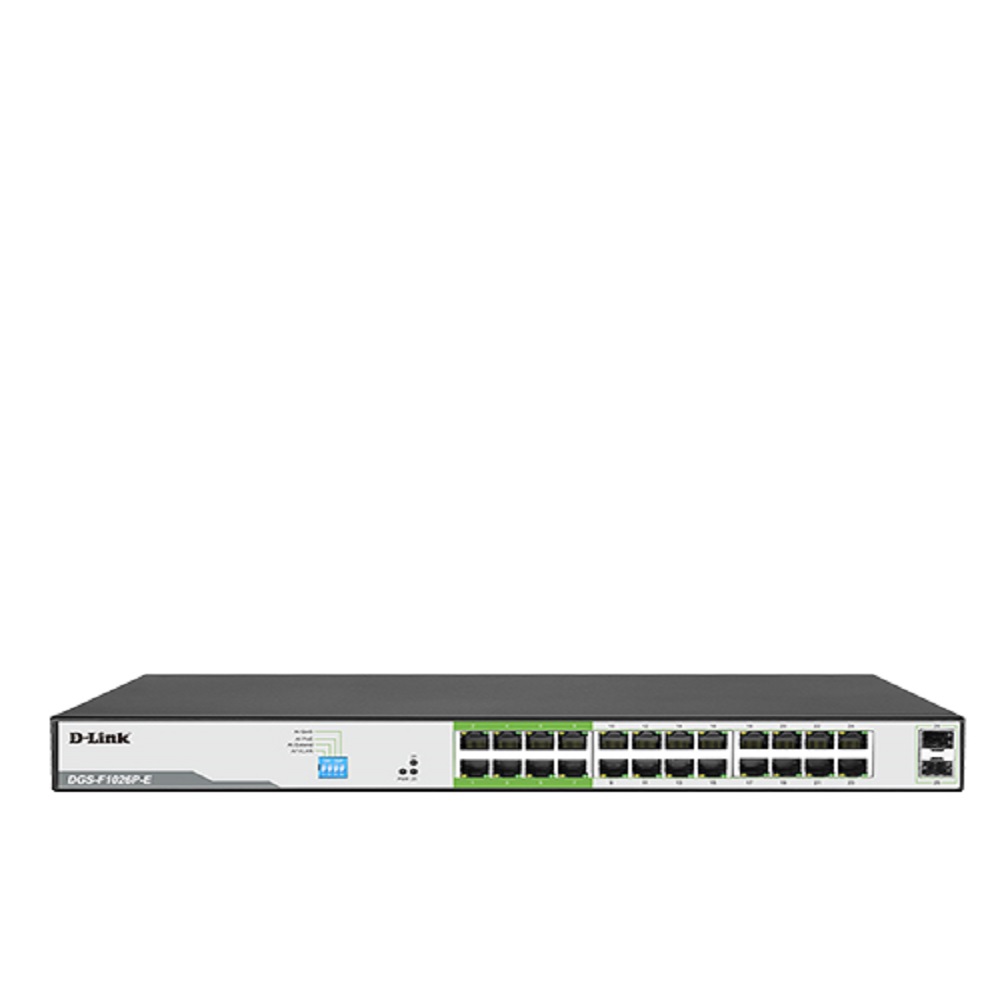

D-Link DGS-F1026P-E Supplier in Dubai, UAE

Features:
High-Speed Networking

• 24 10/100/1000 Mbps Ethernet ports
• Full/half-duplex for Ethernet/Fast Ethernet/Gigabit
• 2 SFP Uplink

Functions

• VLAN
• EXTEND
• PoE
• QoS

Easy Setup

• Plug-and-play installation
• Auto MDI/MDI-X crossover on all ports

PoE Functionality

• Twenty-Four PoE ports
• IEEE 802.3af/at compliant
• 25 0W total power budget
• Up to 30 W power output per PoE port

Technical Specifications:
General:
Size

• Desktop (with Mounting Kit)


Interfaces

• 24 10/ 100/1000 BASE-T ports
• 2 SFP


Standards

• IEEE 802.3ab,Gigabit Ethernet standards
• IEEE 802.3x,Full-duplex Ethernet data link layers；
• IEEE 802.3af/at ,Ethernet power supply POE standard；
• IEEE 802.3u,Fast Ethernet standard；
• IEEE 802.3ab,Gigabit Ethernet standards

OSI Layer

• Layer 2


Media Interface Exchange

• Auto MDI/MDI-X adjustment on all ports


Lighting Protection

• 6KV

Performance:
Switching Fabric

• 52 Gbps

Mac address

• 8K


Transmission Method

• Adopt Store-and-forward


Data Transfer Rates

• Gigabit Ethernet
  – 1000 Mbps
• Ethernet
  – 100 Mbps

Packet Filtering / Forwarding Rates

• 10M port maximum 14800pps
• 100M port maximum 1488000pps
• 1000M port maximum 1488000pps

PoE:
PoE Standards

• IEEE 802.3af IEEE 802.3at

PoE-Capable Ports

• Port 1 – 24 (Port 1 – 8 PoE can support up to 250m @ 10Mbps with Extend enabled)

Power Budget

• 250W (30 W max. per PoE port)

LEDs

• Power
• Link/Activity

Physical:
Weight

• 3kg

Dimensions

• 440 x 180 x 44 mm

Power

• 250W

Temperature

• Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity

• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing

Certifications:
Safety

• LVD

EMI/EMC

• CE
• FCC
