Belden 8471.00305 1P,16AWG STRANDED, TC, PVC/PVC, UNSHIELDED,AUDIO CONTROL&INSTRUMENTATION Supplier in Dubai UAE

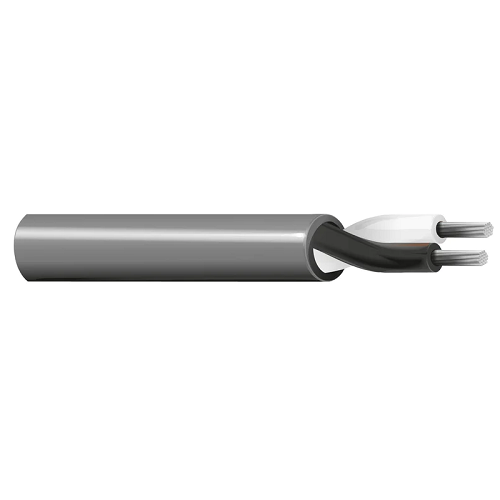

Wire; LonWorks; 1x2x16AWG; stranded; Cu; PVC; grey; 305m; 6.96mm
Enquire on Whatsapp
Description
Specifications
| Cable application | LonWorks |
| Cable external diameter | 6.96mm |
| Cable features | twisted pair conductors |
| Cable Shielding | Unscreened |
| Conductor Area CSA | – |
| Conductor Material | Tinned Copper |
| Core diameter | 16AWG |
| Core structure | stranded |
| CPR standard | Eca |
| External Diameter | 6.9mm |
| Insulation colour | grey |
| Jacket Colour | chrome |
| Jacket Material | PVC |
| Kind of core | Cu |
| Kind of core | tinned |
| Manufacturer | BELDEN |
| No. of Max Strands x Strand Size | 19 x 29AWG |
| No. of pairs | 1 |
| No. of pairs | 1 Pair |
| Number of cores | 2 |
| Operating Temperature | -20…80°C |
| Outer insulation material | PVC |
| Package contents | 305m |
| Product Range | – |
| Reel Length (Imperial) | – |
| Reel Length (Metric) | – |
| Shield structure | unshielded |
| Type of wire | data transmission |
| Voltage Rating | 300Vrms |
| Wire Gauge | 16AWG |
