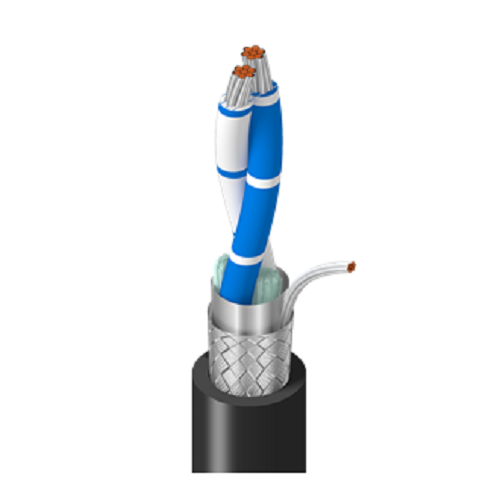

Belden 3105A.00305 RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM, PLTC, Sun Res, Oil Resistant Supplier in Dubai UAE

RS-485, 120 Ohm, 1 pair 22AWG (7×30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES and oil-resistant

Enquire on Whatsapp

Add to wishlist

SKU: 3105A.00305 Category: Belden

Description

Description

Suitable Applications	harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Element	Number of Element	Size	Stranding	Material
Pair(s)	1	22 AWG	7×30	TC – Tinned Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code	Notes
Pair(s)	PE – Polyethylene (Foam)	0.029 in (0.74 mm)	0.087 in (2.2 mm)	White/Blue Stripe & Blue/White Stripe	HDPE

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7×30) TC
Braid	Tinned Copper (TC)	65%

Material	Nom. Thickness	Nom. Diameter
PVC – Polyvinyl Chloride	0.041 in (1.0 mm)	0.281 in (7.14 mm)

Table Notes	Jacket OD +/- 0.006
Overall Cable Diameter (Nominal)	0.281 in (7.14 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Capacitance Cond-to-Other (Conds + Shield)	Nom. Characteristic Impedence	Nom. Velocity of Prop.	Max. Current
Pair(s)	18.2 Ohm/1000ft	11 pF/ft (36 pF/m)	20.9 pF/ft	120 Ohm	78%	6 Amps per Conductor at 30ºC
Conductor(s)

Nom. Outer Shield DCR	4.685 Ohm/1000ft (15.37 Ohm/km)

Element	Frequency [MHz]	Nom. Insertion Loss (Attenuation)
Pair(s)	1	0.5 dB/100ft

UL Voltage Rating
300 V (CM, PLTC)

UL Temperature	Operating
60°C	-20°C to +60°C

Stationary Min.	Installation Min.
3.372 in (85.65 mm)	3.372 in (85.65 mm)

Max. Pull Tension	53.34 lbs (24.19 kg)
Bulk Cable Weight	43 lbs/1000ft

Environmental Suitability	Indoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	UL 1685 UL Loading, FT1, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, Article 800, CM, PLTC
CEC / C(UL) Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Notes	Oil Resistance: Passes Oil Res II Per UL1277, Table 10.17. For CPE jacketed version order Part No. YR44345.
