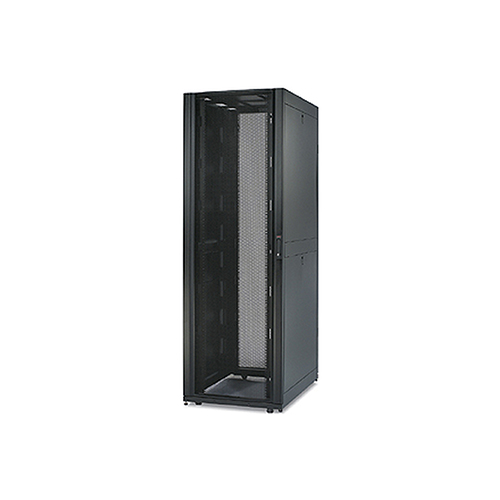

APC AR3157X609 NetShelter SX 48U Server Rack Enclosure, 750mm W x 1070mm D, Black, Without Side Panels Price in Dubai UAE
Enquire on Whatsapp
Description
|
Specifications
|
||
|---|---|---|
| Manufacturer | APC by Schneider Electric | |
| Model | AR3157X609 | |
| Product Line | NetShelter SX | |
| Rack Height | 48U | |
| Rack Width | 19″ EIA‑310 standard | |
| External Dimensions (H × W × D) | 2258 mm × 750 mm × 1070 mm | |
| Net Weight | Approx. 140–160 kg (varies by specific configuration) | |
| Shipping Weight | Depends on packaging | |
| Mounting Depth (Min–Max) | Approx. 191 mm – 915 mm | |
| Static Load Capacity | Up to ~1700 kg (3750 lbs) | |
| Dynamic Load Capacity | Up to ~1020 kg (2250 lbs) | |
| Front Door | Lockable, perforated steel | |
| Rear Door | Lockable, perforated steel | |
| Vertical Posts / Rails | 14‑gauge EIA‑310 mounting rails | |
| Roof / Top Panel | 18‑gauge steel | |
| Side Panels | Not included (open sides) | |
| Protection Rating | IP20 | |
| Color | Black | |
| Included Components | Front & rear doors, roof, casters, leveling feet, baying hardware, keys, mounting hardware (no side panels) | |
| Compliance Standards | EIA‑310E, UL 2416, UL 60950‑1 | |
